eDrawings

When I need to inspect a SolidWorks model away from my desk, eDrawings is the kind of productivity app I reach for first. It is not a replacement for full desktop CAD software, and I would not treat it as one, but it solves a more focused problem: opening a design on an Android phone or tablet so I can review it, show it to someone, or make a quick decision without carrying a workstation into the conversation.

That narrow purpose is also the key to judging it fairly. I see it as a companion for viewing and sharing SolidWorks designs rather than a complete design environment. The app comes from SolidWorks, sits in the productivity category, and has been available since August 2013. Its age gives it a familiar, established feel, although the modest average rating of 2.5 from around 2.8 thousand ratings suggests that the experience is not equally smooth for everyone.

What using eDrawings feels like in everyday work

The most useful scenario is a quick review between people who do not all have access to the same CAD setup. Imagine a designer receiving a question from a colleague on the shop floor: “Can we confirm which side this bracket mounts on?” Opening the model on a phone or tablet is much more practical than waiting to return to a desk. I can rotate the design, inspect its overall shape, and use the screen as a shared reference while discussing the part.

That workflow is especially helpful during meetings, site visits, supplier conversations, and informal design checks. Instead of passing around screenshots that show only one angle, I can show the model itself and change the viewpoint as questions come up. The difference sounds small, but it reduces the back-and-forth that often happens when a flat image hides an important detail.

Advertisements

I would still keep expectations controlled. A mobile screen is excellent for orientation and communication, but it is not the ideal place for detailed engineering work. Fine edges, small openings, and crowded assemblies can become difficult to inspect on a phone. A tablet makes the experience more comfortable, particularly when two people are looking at the same model, but it does not turn the app into a desktop workstation.

Speed expectations on a mobile device

Perceived speed depends heavily on the design being opened and the device doing the work. A simple part should feel more approachable than a complex assembly with many visible components. That is a general consequence of viewing three-dimensional CAD content on mobile hardware, and it is why I would judge the app by how quickly it gets me to a useful inspection rather than expecting every model to feel instant.

The opening stage is the moment where patience matters most. If I am checking one compact component, I expect the app to be convenient for a short task. If I am preparing a large assembly for a meeting, I would open it before the discussion rather than waiting until everyone is watching. That small habit changes the experience: the app becomes a prepared visual reference instead of a source of awkward pauses.

Navigation also feels more demanding when the model contains many parts. Rotating a clean object is naturally easier than trying to understand a dense assembly on a small display. I find that starting with a broad view, then moving closer only when a specific question arises, is more effective than immediately zooming into tiny details. It keeps the interaction purposeful and avoids wasting time searching around the model.

Advertisements

There is a useful trade-off here. A phone gives me speed of access because it is usually nearby, while a tablet gives me more room to inspect the design. For occasional checks, the phone wins on convenience. For repeated reviews or customer-facing demonstrations, I would choose the larger screen whenever possible.

Where heavier use changes the experience

The app is most likely to feel stretched during a long review involving a complicated assembly, repeated viewpoint changes, and several people asking for different details. Those sessions place more pressure on the device than a quick glance at a single part. I would not plan a full afternoon of intensive model examination on an unfamiliar phone without testing the file first.

My practical approach would be to identify the exact question before opening the model. If the aim is to confirm the general arrangement, there is no reason to spend time inspecting every small feature. If the aim is to discuss a particular interface or mounting area, I would go directly there and keep the review focused. This is not just faster; it also makes the mobile screen easier for another person to follow.

For a team workflow, preparation matters more than raw performance. I would open the design ahead of a meeting, check that the view is understandable, and keep the device charged. A short preparation step reduces the risk of discovering that the chosen file is uncomfortable to navigate only after the review has started.

You may also like

Advertisements

Another trade-off is visual clarity versus model complexity. Showing everything at once can communicate the overall structure, but it may make the screen look crowded. Concentrating on one area improves comprehension, yet it can hide how that area relates to the rest of the assembly. I would alternate between those views: begin with context, then isolate the detail, and return to the wider view before making a conclusion.

Reliability and recovering from an awkward session

I would describe reliability here in practical terms rather than promising a flawless experience. The app has a current version of 33.3.0008 and has accumulated over one hundred thousand installs, which gives it a meaningful user base. At the same time, the average rating indicates that users have encountered enough friction for the app not to be an automatic recommendation for every device or workflow.

When a model does not behave as expected, the first recovery step is simple: leave the demanding task and reopen it when the device is in a better state. I would also avoid treating a mobile viewing session as the only copy of an important design. The app is useful for access and discussion, but the original engineering workflow should remain the place where the authoritative design is managed.

For meetings, I prefer a low-risk routine. I open the model before people arrive, test the basic rotation and zoom gestures, and decide which areas I actually need to show. If the file proves uncomfortable, I switch to a prepared image or return to the desktop presentation rather than letting the app become the focus of the meeting. That is a realistic way to use a mobile CAD viewer: as a flexible backup and inspection tool, not as the sole presentation system.

Advertisements

The same thinking applies when sharing a design outside the engineering team. A model can help explain shape and arrangement, but I would be careful about assuming that every viewer needs the full engineering context. For a supplier or manager, a guided view may be more useful than handing over a complex file and expecting them to explore it without assistance.

Device limits that matter before installing

The listed minimum operating system is version 10, so I would check the phone or tablet before paying for the app. That requirement is not especially demanding for a modern device, but older hardware can still make a difference when the model itself is complex. Operating-system compatibility tells me whether installation is possible; it does not guarantee that every large design will feel comfortable to navigate.

Screen size is the most obvious device constraint. On a phone, I can inspect a model while traveling or standing beside equipment, but small controls and fine geometry require more concentration. A tablet is better for collaborative viewing because it gives the model breathing room. If I mainly need quick access in the field, the phone version makes sense; if I expect detailed visual discussions, I would consider the tablet the better fit.

Resource demands are also tied to the type of file. A compact model is a reasonable match for mobile viewing. A visually dense assembly is a more serious test of responsiveness and comfort. I would not buy the app specifically for demanding mobile CAD work without first confirming that the files I use most often behave well on my device.

Advertisements

The price is $1.99, with in-app purchases listed at $7.99 per item. That makes the initial decision relatively approachable, but the total cost can depend on what additional items are relevant to the way I intend to use it. I would look at the purchase screen carefully before committing to a professional workflow, especially if I need more than occasional viewing.

The age rating is Everyone, which fits the app’s practical purpose and does not make it feel aimed at a narrow age group. Still, the audience is specialized by task rather than by age. Someone who never works with SolidWorks designs is unlikely to gain much from installing it, regardless of how accessible the rating sounds.

What it does better than ordinary alternatives

The usual alternative is to send screenshots, export a static image, or wait until someone can open the design on a full computer. Those methods are still useful, but they remove the ability to change the viewpoint during a conversation. A mobile model viewer is stronger when the question is spatial: which face is behind this one, how does this piece sit in relation to the rest, or what does the assembly look like from the opposite side?

It also beats a generic image viewer when the conversation is exploratory. A screenshot answers the question chosen by the person who captured it. A model that can be rotated lets the next person ask a different question without requesting another image. That flexibility is the app’s clearest practical advantage.

On the other hand, the alternatives are better when the audience only needs a polished visual. A carefully prepared image can be faster to understand, easier to place in a presentation, and less dependent on the viewer’s device. Full desktop CAD software remains the better choice for precise design decisions and serious editing. I would use eDrawings between those two extremes: more interactive than a screenshot, much lighter than a full engineering workstation.

This is why I would not recommend it as a general productivity download. Its value appears when the user already has a reason to inspect SolidWorks designs away from a desktop. For that person, the small purchase can remove a surprisingly common inconvenience. For everyone else, the app may feel specialized and underused.

Who should use it, and who should skip it

I think it suits engineers, designers, students working with SolidWorks files, field technicians, project managers, and clients who need a more interactive way to discuss a design. It is particularly useful for someone who frequently moves between an office, workshop, classroom, or customer site and wants the model available on a device already in hand.

I would also recommend it to teams that often lose time explaining three-dimensional relationships through two-dimensional screenshots. The app does not solve every communication problem, but it gives the conversation a shared object to reference. That can make a short review more concrete, especially when the participants are looking at the same part from different backgrounds.

I would skip it if I need to create or substantially edit designs on the device. I would also hesitate if my work depends on inspecting tiny details for long periods, if my phone is old or cramped, or if my files are consistently large assemblies that I have never tested on mobile. In those situations, a desktop CAD setup or a larger-screen workflow is the safer choice.

Users who only need to show one fixed image should probably keep using their existing image or presentation tools. The interactive model is valuable when people need to explore the design, not when the viewpoint has already been decided. Paying for a specialized viewer makes less sense if the real task is simply displaying a static picture.

My performance verdict after weighing convenience against limits

My overall opinion is positive but conditional. eDrawings is a useful mobile companion for SolidWorks design review, and its best quality is not flashy performance; it is the convenience of having a three-dimensional reference available when a desktop is out of reach. The app makes short conversations easier, helps replace some screenshot exchanges, and gives field or meeting-based work a more direct connection to the design.

I would rate its performance by workload. For quick checks of manageable models, I find the concept convincing and the mobile format genuinely practical. For heavy assemblies, extended sessions, or precision-focused inspection, I would prepare carefully and keep a desktop alternative nearby. That is where the app’s limits become more important than its convenience.

The mixed rating is worth taking seriously before purchase. It does not automatically mean the app will fail for me, but it is a reminder to match the tool to the device, file size, and purpose. I would install it on a compatible device, test the models I actually use, and decide from that experience rather than from the low entry price alone.

My recommendation is simple: choose eDrawings when mobile access to SolidWorks models will save you real time, but do not mistake it for a full CAD workstation. Used as a focused viewer for meetings, field checks, and design conversations, it can earn its place on a phone or tablet. Used as the main environment for demanding engineering work, it is likely to feel constrained, and a larger or more powerful alternative would be the better investment.

---

---

FAQ

What is eDrawings and what platforms is it available on?

eDrawings is a versatile CAD viewer designed to facilitate easy sharing and viewing of 2D and 3D designs. It is available for both Android and iOS platforms, allowing users to access their designs on-the-go. With eDrawings, users can view native SolidWorks files and other compatible formats directly on their mobile devices.

How user-friendly is the eDrawings application for beginners?

eDrawings is designed with an intuitive interface that caters to both beginners and experienced users. The app provides simple navigation and viewing options, making it easy for users to explore complex designs. It also includes interactive tutorials and help guides to assist new users in understanding the basic functionalities of the app.

What file formats can I view using eDrawings?

eDrawings supports a wide range of file formats including native SolidWorks files (SLDPRT, SLDASM), DWG, DXF, and STL files. This compatibility ensures that users can view most common CAD files directly on their mobile devices without needing to convert them into other formats, maintaining the integrity and details of the original designs.

Does eDrawings require an internet connection to function?

eDrawings does not require an internet connection for basic viewing and manipulation of files that are already downloaded onto your device. However, certain features such as cloud storage integration, sharing options, and accessing online help resources may require an active internet connection to function optimally, enhancing the overall user experience.

Are there any costs associated with using eDrawings?

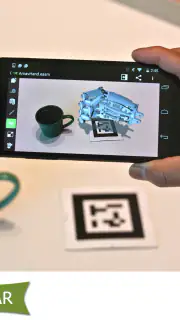

eDrawings offers a free version with basic features, which is sufficient for casual users. For advanced functionalities like augmented reality, more file compatibility, and additional tools, users can opt for the paid version through in-app purchases. This allows for a more enriched experience tailored to professional needs and extensive use.
